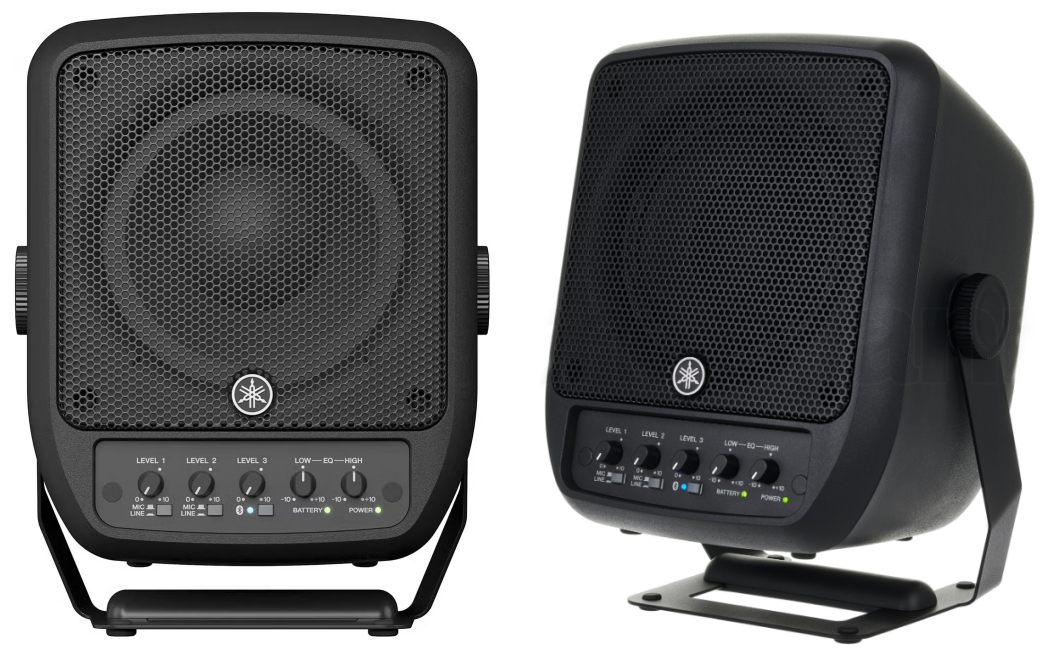

STAGEPAS 100 Portable PA System
Yamaha’s STAGEPAS 100 BTR is a 100W, battery operated portable PA system featuring: 3 Channel Digital Mixer (2 mono mic/line + 1 line) | LF 6.5″ Driver | HF Coaxial Compression Driver with 1.4″ Voice Coil | Bluetooth Compatible | 2-band master EQ |Internal Lithium-ion Battery.
The STAGEPAS 100 BTR battery operated, portable PA system strikes a perfect balance between high-quality sound and ultimate portability that will allow you to turn virtually any location into your own intimate live stage.
Far more than just a speaker that amplifies your mic or instrument inputs, the diminutive STAGEPAS 100 BTR delivers impressive sonic performance by leveraging some of the same technologies used in our high-end professional products. A powerful, high-quality coaxial compression driver combined with Yamaha’s FIR-X filters for the HF and LF crossover deliver sound pressure, precise phase response, and a natural dispersion that will ensure every nuance of your performance is conveyed loud and clear to your audience.
A PA in the palm of your hand
With all the essentials for a compact PA packed into a durable cabinet weighing just 5 kg, the STAGEPAS 100 BTR takes portability to a whole new level. Having a personal live stage you can easily carry in one hand makes it possible to set up and play literally anywhere, anytime.
SPECIFICATION
100 W Class-D amplifier
1.4” HF + 6.5” LF high-quality coaxial compression driver using an FIR filter for the crossover
3-channel mixer (2 monaural mic/line + 1 line)
Equipped with a 2-band master EQ
Compatible with Hi-Z input (Channel 2 only)
Equipped with mix-out
Carrying handle doubles as an adjustable stand
Compatible with audio accompaniment over Bluetooth
Internal lithium-ion battery
Accessories
Optional carrying bag (BAG-STP100) available for convenient transport
Battery
Type: Rechargeable Lithium-ion battery
Capacity: 60 W/H
Operating Time: Maximum 6 hours | 1/16 power continuous 5 hours
Charging time: Circa 2.5 hours
Dimensions
Width: 239mm / 9.5”
Height: 301mm / 12.3”
Depth: 215mm / 8.5”
Weight: 5.5kg / 12.1lbs [without AC adapter]
